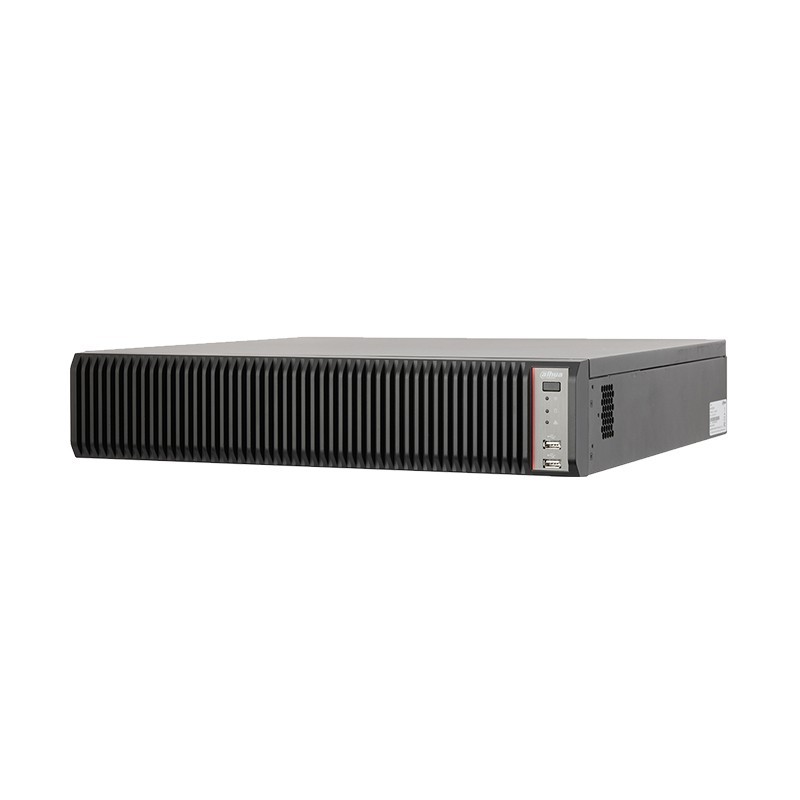

Dahua IVSS7008-1I 2U 8HDD AI Network Video Recorder

Dahua IVSS7008-1I 2U 8HDD AI Network Video Recorder (Hálózati rögzítő egység, NVR

Technical Specification

System
Main Processor Industry embedded micro-controller
Operating System Embedded Linux OS
Operation Interface WEB (PCAPP), local GUI
AI Applications
AI by Camera
Supports AI by camera function: Human face detection, human face recognition, video metadata (human/vehicle/non-motorized vehicle), perimeter protection
AI by Device
Supports AI by IVSS function: Human face detection, human face recognition, video metadata (human/vehicle/non-motorized vehicle), perimeter protection, plate recognition
Perimeter Protection
Perimeter Function (AI by device) 16-channel
Perimeter Function (AI by camera) 64-channel
Human Face Detection
Human Face Properties Supports 6 properties: Gender, age range (6 levels), glasses, expression (11 types), mouth mask, and beard
Face Detection
Performance (AI by device) (1080P) (Channel Amount)
6-channel, one channel max. supports 12 human faces
Face Detection
Performance (AI by camera) (Channel Amount) 20-channel
Human Face Recognition
Face Database Capacity Max. 50 human face databases, 300000 pictures, each database contains 300000 pictures
Human Face Recognition
Performance (AI by device) (1080P)(Channel Amount) 6-channel, 20 face pictures per second processing
Human Face Recognition
Performance (AI by camera) (Channel Amount) 20-channel
Plate Recognition
Plate Database Capacity
Max. 50 plate databases, each database contains 300000 plate numbers
Support black list/white list
Plate Detection
Performance by ITC
Camera (Channel Amount) 32-channel
Video Metadata
Human Body Properties Top color, top type, bottom color, bottom type, cap, bag, age, gender, and umbrella
Vehicle Properties
Supports 9 properties: Plate, plate color, vehicle body, vehicle brand, driver calling, seatbelt status, decoration object in the vehicle, and vehicle registration place
Non-motorized Vehicle
Properties
Supports 4 properties: Vehicle type, vehicle color, people amount, and helmet
Metadata Performance
(AI by device) (1080P) (Channel Amount) 4-channel
Metadata Performance
(AI by camera) (Channel Amount) 32-channel
Video Parameters
Remote Connection 128-channel
Network Bandwidth
Incoming bandwidth: 400Mbps
recording bandwidth: 320Mbps
outgoing bandwidth: 96Mbps
Resolution 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/CIF/QCIF
Decoding Capability 20-channel 1080P@ 30fps
Video Output
2-channel VGA output, 3-channel HDMI output, VGA 1/ HDMI 1 outputs the same video source. VGA2/HDMI2 outputs the same video source. Supports 4K output
Multi-screen Display
Customized display
Max. 36-channel local live view
Max.16-channel PCAPP live view
Third-party Support Onvif, RTSP, Sony, Panasonic, Axis, Arecont,
Pelco,Canon, Samsung
Operating System Embedded Linux OS
Operation Interface WEB(PCAPP), local GUI
Compression
Video Compression Smart H.265+/Smart H.264+/H.265/H.264
Audio Compression G.711A/G.711U/PCM/G726
Network
Protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P
Mobile Phone iOS, Android
Interoperability ONVIF (profile S), CGI, SDK
Browser Chrome, PCAPP, IE9 or higher, Firefox
Network Mode NIC binding mode such as multiple-address mode, load balance, fault-tolerance, etc
Record Playback
Multiple-channel Playback Max. 16-channel playback
Record Mode Search video detection/manual record/IO alarm/ intelligent event/all record file
Storage Mode Internal HDD, SAS disk array enclosure
Backup Mode HDD, peripheral USB storage device
Playback
Play, pause, stop, fast forward, fast backward, reverse play, frame by frame play
Full-screen, backup (clip/file), snapshot, digital zoom, audio on/off
Storage
HDD Group 8
RAID RAID 0/1/5/6/10
Storage Pool N/A
Alarm
General Alarm Motion detect, tampering, local alarm
Anomaly Alarm
IPC offline alarm, storage error, HDD full, IP conflict,
MAC conflict, login lock, AI module temperature alarm,
AI module offline, fan malfunction
