Dahua TPC-BF3221-T testhő érzékelő hőkamera

Dahua TPC-BF3221-T testhő érzékelő hőkamera

· VOx uncooled thermal sensor technology
· Athermalized Lens (thermal camera), Focus-free
· 1/2.8” 2Megapixel progressive scan Sony cmos
· Support ROI, Motion Detection, Color Palettes

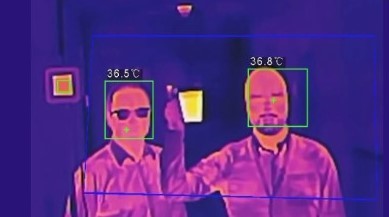

· Support measure body temperature,
· Measurement Accuracy: Max (±0.3°C, with black-body)
· Active deterrence with white light & siren
· Built-in 2/2 alarm in/out
· Micro SD memory, IP67, PoE

Technical Specification
Thermal Camera
Image Sensor Uncooled VOx Microbolometer
Effective Pixels 256(H)x192(V)
Pixel Size 12um
Thermal Sensitivity (NETD) <50mK@f/1.1
Spectral Range 8~14um
Image Setting Brightness/Sharpness/ROI/AGC/FFC/3D DNR
Color Palettes
18(Whitehot/Blackhot/Ironrow/Icefire/
Fusion/Rainbow/Globow/Iconbow1/
Iconbow2 .etc)
Thermal Lens
Lens Type Fixed
Focus Control Athermalized, Focus-free
Focal Length 3.5mm 7.1mm
Angle of View
H: 50.6°
V: 37.8°
H: 24°
V: 18°
Visible Camera
Image Sensor 1/2.8" 2M CMOS
Effective Pixels 1920(H)x1080(V)
Electronic Shutter Speed 1/1 ~ 1/30,000s
Min. Illumination Color: 0.002Lux; B/W: 0.0002Lux; 0Lux (IR on)
IR Distance 35m
IR On/Off Control Auto/Manual
IR LEDs 1
Visible Lens
Focal Length 4mm 8mm
Max Aperture F2.0 F1.9
Angle of View H: 84° V: 45° H: 40° V: 22°
Temperature Measurement
Measurement Range 30°C ~+45°C
Measurement Accuracy Max (±0.3°C, ±0.3%) with black-body
Max (±1°C, ±1%) without black-body
Measurement Mode Spot/Line/Area
Measurement Rule
Spot: 12
Line: 12
Area: 12
Support 12 rules simultaneously
Video
Compression H.265/H.264/MJPEG
Frame Rate
Main Stream:
Thermal: 1280*960/1024*768/640*480/256*192@25fps
Visible: 1080P (default)/720P@25fps
Sub Stream:
Thermal: 640*480/256*192@25fps
Visible: CIF(default)/D1@25fps
Bit Rate Control CBR/VBR
Bit Rate H.264: 640 ~ 8192Kbps
Day/Night Auto(ICR)/Color/B/W
BLC Mode BLC/HLC/WDR
White Balance Auto, Manual
Noise Reduction Ultral DNR
Motion Detetion Off/On (4 zone, Rectangle)
Region of Interest Off/On (4 zone)
Electronic Image Stabilization
(EIS) NA
Defog Off/On
Flip 180°
Mirror Off/On
Privacy Masking Off/On (4 area, Rectangle)
Audio
Compression G.711a/G.711Mu/AAC
Network
Ethernet RJ-45 (10/100Base-T)
Protocol
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
802.1x
Interoperability ONVIF Profile S & G, API
Streaming Method Unicast/Multicast
Max. User Access 10 Users/20 Users
Edge Storage
Micro SD (128GB)
Memory status display (Normal/Error/Active/
Formatting/Lock),
NAS (Network Attached Storage), Local PC for
instant recording
Web Viewer <IE11, <Chrome45, <Firefox52
Management Software Smart PSS, DSS
Smart Phone Android, IOS
