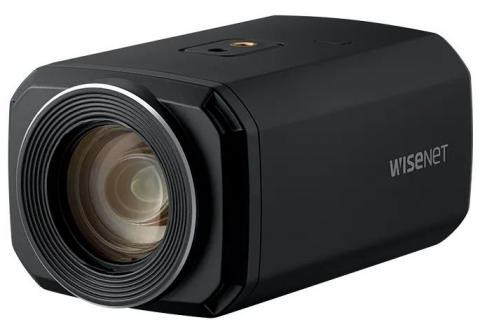

Hanwha Vision XNZ-6320A zoomkamera

Hanwha Vision XNZ-6320A zoomkamera

Video
Imaging Device 1/2.8" 2MP CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720,
1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux (1/30sec, F1.6)
B/W: 0.005Lux (1/30sec, F1.6)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
USB: Micro USB Type B, 1280x720 for installation

Lens
Focal Length (Zoom Ratio) 4.44 ~ 142.6mm (Optical 32X) (digital 32x, total 1024x zoom)
Max. Aperture Ratio F1.6(Wide) ~ F4.4(Tele)
Angular Field of View H: 64.66(Wide)~2.29(Tele) / V: 38.08(Wide)~1.30(Tele)
Min. Object Distance Wide 1.5m(4.92ft) ,Tele 2m(6.56ft)
Focus Control Auto, One shot AF
Lens Type DC auto iris

Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain Control OFF/ LOW/ MID/ HIGH
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit,
Loitering, Tampering, Virtual line, Audio detection, Sound classification, Shock detection
Serial Interface RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/O Input 1ea / Output 2ea
Alarm Triggers Analytics, Network disconnect, Alarm input
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at Event Triggers
Alarm output
Handover(PTZ Preset)
Audio In Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
XNZ-6320A
Design and specifications are subject to change without notice. The latest product information / specification can be found at hanwha-security.com
ⓒ Hanwha Techwin Co., Ltd. All rights reserved. 04-2022 2/4
Audio Out Line out, Max.output level: 1Vrms

Network
Ethernet RJ-45(10/100BASE-T), SFP(100BASE-FX)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Audio Compression G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP,
SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access Log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform

General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish,
Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2 slot 512GB
Memory 1024MB RAM, 256MB Flash

Environmental & Electrical
Operating Temperature / Humidity -10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 90% RH(Non-condensing)
Input Voltage PoE(IEEE802.3af, Class3), 12VDC
Power Consumption PoE: Max 7.5W, Typical 4.5W
12VDC: Max 7.0W, Typical 4.0W

Mechanical
Color / Material Dark grey / Aluminum
Product Dimensions / Weight 96 x 76 x 143.5mm(3.78x2.99x5.65"), 578g (1.27 lb)

DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft)
Observe (63PPM/ 19PPF) Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft)
Recognize (125PPM/ 38PPF) Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft)
Identify (250PPM/ 76PPF) Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft)
