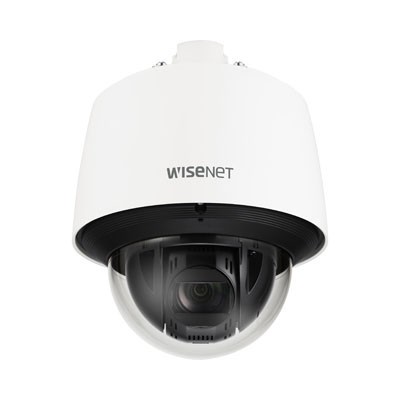

Hanwha Wisenet QNP-6250H PTZ, 2MP-es speed dome kamera

Hanwha Wisenet QNP-6250H PTZ, 2MP-es speed dome kamera

Video
Imaging Device 1/2.8" CMOS
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576,
720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.05Lux(F1.6, 1/30sec)
BW: 0.005Lux(F1.6, 1/30sec)
Lens
Focal Length (Zoom Ratio) 4.44~111mm(25x) zoom
Max. Aperture Ratio F1.6(Wide)~F3.9(Tele)
Angular Field of View H: 64.66(Wide)~2.99(Tele) / V: 38.08(Wide)~1.68(Tele)
Min. Object Distance Wide: 1.5m(4.92ft), Tele: 2m(6.56ft)
Focus Control Oneshot AF
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan Range 360 Endless
Pan Speed Preset: 700/sec, Manual: 0.024/sec~200/sec
Tilt Range 105(-15~90)
Tilt Speed Preset: 300/sec, Manual: 0.024/sec~200/sec
Sequence Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy ±0.2
Operational
Camera Title Displayed up to 85 characters
Direction Indicator Support
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support(built-in gyro sensor)
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, Quadrangle Support
- Color: Grey/Green/Red/Blue/Black/White
- Solid/Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
* Audio detection(with NW I/O Box)
QNP-6250H
06-2020 - 2 -
Alarm Triggers Analytics, Network disconnect
* Alarm input(with NW I/O Box)
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
PTZ Preset
Handover
* Alarm output(with NW I/O Box)
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264,MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast (128 user)
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS,
DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM,
UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,,
Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 1slot 256GB
Memory 1024MB RAM, 256MB Flash
Environmental & Electrical
Operating Temperature / Humidity Normal : -35°C~+55°(-31°F ~ +131°F) / Intermittent : -40°C~+60°C(-40°F ~ +140°F)
* Start up should be done at above -30°C
Less than 95% RH(Non-condensing)
Storage Temperature / Humidity -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
Certification IP66, IK10, NEMA4X
Input Voltage PoE+(IEEE802.3at, Class4)
Power Consumption Max. 23W, Typ. 14W
Mechanical
Color / Material White
RAL Code RAL9003
Product Dimensions / Weight Ø204.3 x 265mm(8.04 x 10.43”), 2.7kg(5.95lb)
QNP-6250H
06-2020 - 3 -
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 64.2m(199.1ft) / Tele: 1471.3m(4827.2ft)
Observe (63PPM/ 19PPF) Wide: 24.3m(79.6ft) / Tele: 588.5m(1930.9ft)
Recognize (125PPM/ 38PPF) Wide: 12.1m(39.8ft) / Tele: 294.3m(965.4ft)
Identify (250PPM/ 76PPF) Wide: 6.1m(19.9ft) / Tele: 147.1m(482.7ft)
