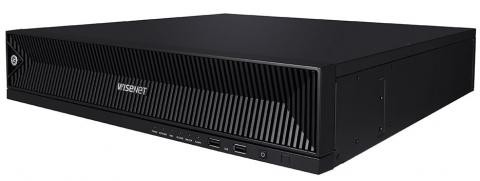

Hanwha Wisenet XRN-1620B2 IP rögzítő

Hanwha Wisenet XRN-1620B2 IP rögzítő
410 128 Ft (nettó)
520 863 Ft (bruttó)
db Kosárba Kosárba

Hanwha Wisenet XRN-1620B2 IP rögzítő



16CH 32MP NVR,

Hármas H.265 / H.264 / MJPEG tömörítés,

140Mbps hálózati kamera felvétel / 32Mbps lejátszási teljesítmény,

ARB (Automatikus helyreállítási biztonsági mentés) és Failover (N + 1),

akár 8 SATA HDD (max. 80TB),

HDMI/VGA helyi kettős monitor,

SUNAPI, ONVIF,

Könnyű konfigurálás (P2P),

HDD nélkül!

Részletek Hasonló termékek Adatok Vélemények

  • Hanwha Wisenet XRN-1620B2 IP rögzítő



    Display
    Network camera Inputs Maximum 16 Channels
    Resolution 32MP ~ CIF
    Protocols SUNAPI, ONVIF
    Decoding Local Display FHD : HDMI & VGA Dual monitor
    UHD : HDMI Single monitor
    Multi Screen
    Display [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence
    [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
    Resolution [Local Monitior]
    FHD Clone mode : 32MP(15fps, H.265 Only), 12MP(30fps, H.265 Only), 8.3MP(50fps),
    1080p(240fps), D1(480fps)
    UHD Single mode : 32MP(15fps, H.265 Only), 12MP(30fps, H.265 Only), 8.3MP(50fps),
    1080p(240fps), D1(270fps)
    FHD Expand mode: 32MP(12fps, H.265 Only), 12MP(25fps, H.265 Only), 8.3MP(30fps),
    1080p(90fps), D1(200fps)
    Clone/Single mode : Maximum 15fps when displaying more than 10 channels
    Expand mode : Up to 9 divisions, Maximum 15fps when displaying more than 8 channels
    Performance
    Operating System Embedded
    Record Compression
    Recording
    Bandwidth
    Linux
    H.265, H.264, MJPEG
    Maximum 140Mbps
    Resolution 32MP ~ CIF
    Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
    Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio),
    Dynamic Event
    Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
    Search & Play Playback
    Bandwidth Maximum 32Mbps
    User
    Simultaneous
    playback
    Maximum 4 Users (Local 1, Remote 3)
    Maximum 64 Channels (Local 16 Channels, Remote 16 Channels per user)
    Fisheye
    Dewarping CMS
    Storage
    Backup
    Mode Date & Time(Calendar), Event list, Text Search, Smart Search
    Resolution CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
    Playback Control Fast/Slow Forward / Backward, Move one step Up / Down
    Supported HDD Up to 10TB
    HDD Slot SATA 8ea(Max. 80TB)
    File backup BU/Exe(GUI), JPG/AVI(Network)
    Function Multi channel(Up to 16 Channels) Play, Date-Time/Title display
    Network
    Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server,
    Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S),
    SUNAPI(Server, Client)
    DDNS Hanwha DDNS
    XRN-1620B2
    03-2021
    - 2 -

    Transmission Bandwidth
    Audio Input/Output
    Compression
    Audio
    Communication
    Maximum 140Mbps
    16 Channels (network)
    G.711, G.726, AAC(16/48KHz)
    2-Way
    Max Remote Users Search(3), Live Unicast(10), Multicast(20)
    Security IP address filtering, User access Log, 802.1x, Encryption
    Device certificate(Hanwha Techwin Root CA), Signed firmware
    Web viewer Supported OS Windows 10, macOS 10.13
    Supported
    browser Google Chrome, Microsoft Edge, Mac Safari, Firefox
    Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
    Support SDK/CGI(SUNAPI) for integration to 3rd party VMS
    Functions
    Camera Setup Register Auto, Manual
    Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8
    point polygon)
    Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N,
    SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera
    Webpage
    PTZ Control Via GUI, Webviewer, SPC-2000
    Preset 300 Presets
    Smart phone Support Model iOS, Android
    Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
    Control Live 16 Channels (Multi-Profile Support), Playback 4 Channels
    Max. Remote
    Users Search(3), Live Unicast(10)
    Redundancy Failover N+1
    ARB Support
    Easy configuration P2P(QR code)
    Interface
    Front Indicator HDD, Alarm, Power, Record, Backup, Network
    Storage OK
    HDMI 1EA 3840x2160 30Hz
    VGA 1EA 1920x1080 60Hz
    Audio Out 1EA
    Ethernet RJ-45 2EA (LAN/WAN, 1Gbps)
    Alarm In 4EA, Out 2EA
    USB 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
    Power inlet AC 1EA
    System
    Log Log List
    System Control
    Maximum 100,000 (System Log, Event Log each)
    Mouse, Web, Controller (SPC-2000)
    XRN-1620B2
    03-2021
    - 3 -

    Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech,
    Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish,
    Korean, Chinese, Japanese, Thai, Vietnamese
    Environmental
    Operating Temperature 0°C to +40°C(32°F to 104°F)
    Operating Humidity 20% ~ 85% RH
    Electrical
    Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
    Power Consumption 130W
    Mechanical
    Color / Material Black
    Dimension (WxHxD) 440 x 89.8 x 428.4 mm
    Weight 5.71Kg
    Intelligent Analysis
    AI Search Object Attribute Compatible for Wisenet AI Camera

  • Gyártó
    Samsung
    Képfeldolgozás
    NVR
    Csatornák száma
    16 csatornás
    Gyártó
    Samsung
    Cikkszám
    AK-XRN-1620B2
