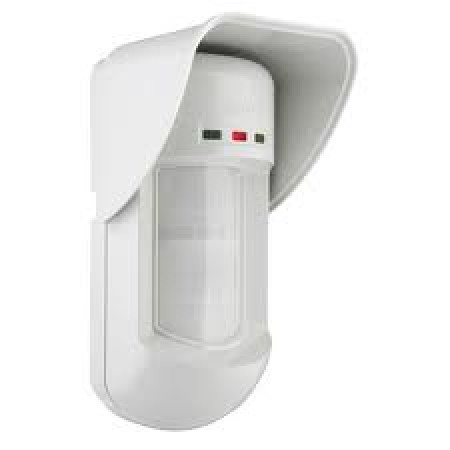

RISCO RK315DT WatchOUT kombinált érzékelő (3960)

Name: RISCO RK315DT WatchOUT kombinált érzékelő (3960)
Brand: Risco
SKU: AK-RK315DT

Rövid leírás:

Kombinált, kültéri mozgásérzékelő (10.525GHz) 2 db PIR + 2 mikrohullámú érzékelő van benne; 3 lencse tartozékban jár (1. függöny: 15 m 5°, 2. folyosó: 23m 5°, 3. széles látószögű tartomány: 15m 90°). WATCHOUT (RA300B00000A) standard fali konzol gyári tartozék; védettség: IP 65 (esővédő burkolat a nap, eső, hó, jég és madarak ellen); kisállat védelem: 70cm-es magasságig súlymegkötés nélkül; kitakarás (aktív IR antimaszk) és piszkos lencse jelzése; szerelési magasság: 1m – 2,7m standard fali konzollal; áramfelv.: 70mA; működési tart.: -30°C - +60°C-ig

Részletek

RISCO RK315DT WatchOUT kombinált érzékelő (3960)

Features

Coverage: Wide angle: 15m (50’) 90°, Long-range: 23m (75’) 5°, Barrier: 15m (50’) 5°
Pet friendly up to 70cm (2’4’’)
Two microwave and two PIR channels
Microwave anti-collision allows back-to-back and face-to-face installations
Flexible mounting height 1m to 2.7m (3’ to 8’) and wide range of professional swivel brackets protective hood and IP65 environment rating
RISCO Bus dramatically reduces cabling, installation equipment and labor costs, while providing benefits of remote services
Opto relays for defeating large magnets
Active IR anti-mask and Proximity alerts
Model names:
RK315DT WatchOUT DT Extreme
RA300B Barrier swivel for installation 90° to the mounting surface
RA300P Pole adaptor for professional installation on poles
RA300C Conduit adaptor for installation with wiring external to the wall, when not
using the standard swivel
RA300SC Swivel Metal Conduit for installation with wiring external to the wall, when
using the standard swivel
RA300HS WatchOUT without electronics for “scarecrow” installation
RA300VC WatchOUT cover with adaptor for WATEC CCD camera (camera not
included)

Technical Specifications

Wide angle coverage: 15m (50ft) 90°
Long-range coverage: 23m (75ft) 5°
Barrier coverage: 15m (50ft) 5°
RISCO Bus or relay installation
Detection Channels: Two microwave and two PIR channels
2 PIR channel detection method: Digital Correlation™ Technology
2 Microwave channels detection method: Sway Recognition™ Technology
Active IR Anti-mask: Detects beyond hood
Anti-Sabotage: Directional proximity alert using 2 microwave channels
Mounting height: 1m to 2.7m (3’3” to 8’10”), 2.2m (7’2”) for barrier, and Long Range lenses
Pet immunity: Animals up to 70cm (2’4”) head height with no weight limitation
Dirty lens alert
Operating voltage : 9-16 VDC
Alarm contact: NC, 100mA, 24 VDC
Tamper contact: NC. 100mA, 24 VDC
Mask/ Fault contact: NC , 100mA, 24 VDC
Dirty lens output: 70mA open collector
Environment rating: IP 65
Operating temperature” -30°C to 60°C (-22°F to 140°F)
Dimensions: 230 x 121 x 123mm (9” x 4.76” x 4.85”)
